LAN 200flex (FTP-Patch)

Patch Cable, Foil-Screened for Local Networks

Application:

In the device connection wiring as a patch, switching, or connecting lead for the use in switching cabinets as well as for the connection of data terminals. Area of application: IEEE 802.3:10 Base T, 10 Base T Ethernet, 100 Base T, 1000 Base T, FDDI, ISDA, AT

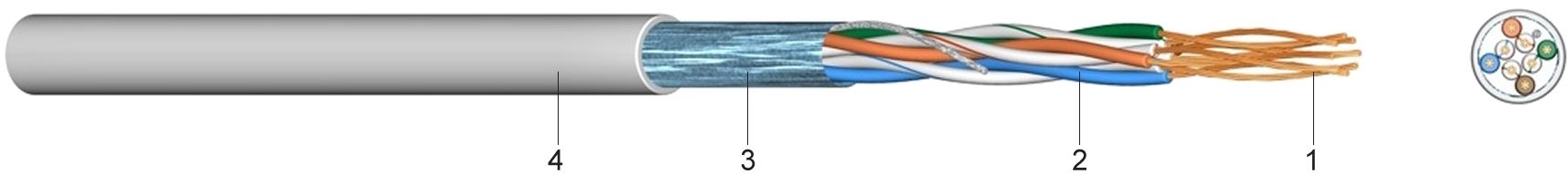

Construction:

1 ..... fine-stranded bare copper
2 ..... core insulation of polyethylene (PE)
3 ..... static screen of aluminium fo
4 ..... outer sheath of polyvinylchloride (PVC), grey

Standards:

Category 5
TIA/EIA 568 B,
ISO/IEC 11801 2. Output
EN 50173-1
IEC 708-1 (core identification)

Technical data:

Temperature range	moved	0°C till +60°C
Loop impedance		[Ohm/100 m]	39
Capacity	max.	[nF/km]	50
Nom. Velocity of propagation	NVP nom.		77
Attenuation	1-100 MHz	[Ohm]	100,0 +/- 15
Capacity coupling (f=800 Hz)	K<100	[pF/100 m]	150
Insulation resistance		[GOhm/km]	5
Bending radius	under tension	8,0 x Ø
	no tension	4,0 x Ø

Number of pairs and nominal dimensions AWG Nr.	Copper figure kg/km		Overall diameter appr. mm		Calorific potential kWh/m		Tractive force N		Weight appr. kg/km
4 x 2 x AWG 26 PVC	15		4,9		0,11		30		24
4 x 2 x AWG 26 FRNC	15		4,9		0,11		30		24
