Communication and phone cables

F-vYAY

F-vYAY Installation Cable for Telecommunication

Technical data:

Operating peak voltage[V]200 V eff. / 300 V
Test voltage at 50 Hzcore / core[V]AC500
core / screen[V]AC2000
Temperature rangein motion -5°C till +50°C
one time / fixed-30°C till +70°C
Bending radiusin motionx diameter15
FlammabilitystandardEN 60332-1-2
Insulation resistancemin.[MOhm/km]500
Mutal capacitance[Ohm/km]195,6
max.[nF/km]100
Capacitance unbalance 100mmax.[pF]500

Application:

They are suitable for fixed installation indoors and are used for telecommunication purposes.

F-YAY

F-YAY Installation Cable for Telecommunication

Technical data:

Operating peak voltage[V]200 V eff. / 300 V
Test voltage at 50 Hzcore / core[V]AC500
core / screen[V]AC2000
Temperature rangein motion -5°C till +50°C
one time / fixed-30°C till +70°C
Bending radiusin motionx diameter15
Insulation resistancemin.[MOhm/km]500
max.[nF/km]100
Capacitance unbalance 100mmax.[pF]500

Application:

They are suitable for fixed installation indoors and are used for telecommunication purposes.

J-Y(ST)Y

J-Y(ST)Y Installation Cable for Telecommunication

Technical data:

Operating peak voltage[V]300 V
Test voltage at 50 Hzcore / core[V]AC800
core / screen[V]AC800
Temperature rangein motion -5°C till +50°C
one time / fixed-30°C till +70°C
Bending radiusin motionx diameter15
Insulation resistancemin.[MOhm/km]100
max.[nF/km]10
Capacitance unbalance 100mmax.[pF]300

Application:

They are suitable for fixed installation indoors and are used for telecommunication purposes.

YYSch

YYSch PVC Insulated Telecommunication CableSdělovací kabel s PVC izolací

Technical data:

Operating peak voltage[V]65 volt eff.
Test voltage[V]AC500
Temperature rangein motion+5°C till +50°C
Bending radiusin motionx diameter15
FlammabilitystandardEN 60332-2-2
Insulation resistancemin.[MOhm/km]50
Conductor resistancemax.[Ohm/km]65

Application:

For indoor installation in conduits, cable ducts or on the wall surface. This cable is suitable for the application in intercom communicators but not admissible in heavy current installations.

YR

YR PVC Insulated Telecommunication Cable

Technical data:

Operating peak voltage[V]100 volt
Test voltage[V]AC1000
Temperature rangein motion+5°C till +50°C
Bending radiusin motionx diameter15
FlammabilitystandardEN 60332-1-2

Application:

For indoor installation in conduits, cable ducts or on the wall surface. This cable is suitable for the application in intercom communicators but not admissible in heavy current installations.

F-vYDvY

F-vYDvY Telephone Modem Cable BTX Cable

Technical data:

Operating peak voltage[V]300 volt eff.
Temperature rangein motion-5°C till +70°C
FlammabilitystandardEN 60332-2-2
Impedance0,1-2 Mhz[Ohm]850
Mutal capacitancemax.[nF/km]120
Capacitance unbalance 100mmax.[pF]500
Aderwiderstand[Ohm x km]98

Application:

For fixed installations in all types of plants with interference and radiation hazard of the audio and communication engineering. It is used as a data connection cable as well as a modem cable.

F-2YA2Y

F-2YA2Y Plastic Insulated Telecommunication Cable for Local Networks

Technical data:

Operating peak voltage[V]200 V eff. / 300 V
Test voltage at 50 Hzcore / core[V]AC500
core / screen[V]AC2000
Temperature rangein motion-20°C till +90°C
Bending radiusin motionx diameter15
Insulation resistancemin.[MOhm/km]10000
Mutal capacitancemax.[nF/km]55
Capacitance unbalance 100mmax.[pF]1500

Application:

They are suitable for the installation into the earth, in conduits, cable ducts and are used as network cables in industrial and operational plants, mainly in lowfrequency installations.

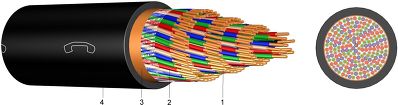

F-2YC2Y

F-2YC2Y Plastic Insulated Telecommunication Cable for Local Networks

Technical data:

Operating peak voltage[V]200 V eff. / 300 V
Test voltage at 50 Hzcore / core[V]AC500
core / screen[V]AC2000
Temperature rangein motion-20°C till +90°C
Bending radiusin motionx diameter15
Insulation resistancemin.[MOhm/km]10000
Mutal capacitancemax.[nF/km]55
Capacitance unbalance 100mmax.[pF]1500

Application:

They are suitable for the installation into the earth, in conduits, cable ducts and are used as network cables in industrial and operational plants, mainly in lowfrequency installations.

F-2YJA2Y

F-2YJA2Y Plastic Insulated Telecommunication Cable for Local Networks, transversely and longitudinally water-proof

Technical data:

Operating peak voltage[V]200 V eff. / 300 V
Test voltage at 50 Hzcore / core[V]AC500
core / screen[V]AC2000
Temperature rangein motion-20°C till +90°C
Bending radiusin motionx diameter15
Insulation resistancemin.[MOhm/km]5000
Mutal capacitancemax.[nF/km]52
Capacitance unbalance 100mmax.[pF]300

Application:

They are suitable for the installation into the earth, in conduits, cable ducts and are used as network cables in industrial and operational plants, mainly in lowfrequency installations.

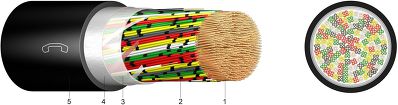

A-2Y(L)2Y

A-2Y(L)2Y Plastic Insulated Telecommunication Cable for Local Networks

Technical data:

Operating peak voltage[V]225 volt
Test voltage at 50 Hzcore / core[V]AC500
core / screen[V]AC2000
Temperature rangein motion-20°C till +50°C
one time / fixed-20°C till +70°C
Bending radiusin motionx diameter15
Insulation resistancemin.[MOhm/km]5000
Mutal capacitancemax.[nF/km]52
Capacitance unbalance 100mmax.[pF]800

Application:

Suitable for the installation into the earth, in conduits, cable ducts and are used as network cables in industrial and operational plants, mainly in LF-installations.

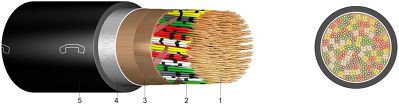

A-2YF(L)2Y

A-2YF(L)2Y Plastic Insulated Telecommunication Cable for Local Networks, transver. and longitud.water-proof

Technical data:

Operating peak voltage[V]225 volt
Test voltage at 50 Hzcore / core[V]AC500
core / screen[V]AC2000
Temperature rangein motion-20°C till +50°C
fixed-20°C till +70°C
Bending radiusin motionx diameter15
Insulation resistancemin.[MOhm/km]5000
Mutal capacitancemax.[nF/km]52
Capacitance unbalance 100mmax.[pF]800

Application:

Suitable for the installation into the earth, in conduits, cable ducts and are used as network cables in industrial and operational plants, mainly in LF-installations.

JB-YY

JB-YY Fire Alarm Cable

Technical data:

Operating peak voltage[V]300 volt
Test voltage[V]AC800
Temperature rangein motion -5°C till +50°C
one time / fixed-30°C till +70°C
Bending radiusin motionx diameter15
FlammabilitystandardEN 60332-1-2
Insulation resistancemin.[MOhm/km]100
Mutal capacitance[Ohm/km]73,2
max.[nF/km]100

Application:

They are suitable for fixed installation indoors and are used for fire alarm systems.

JB-Y(ST)Y

JB-Y(ST)Y Fire Alarm Cable

Technical data:

Operating peak voltage[V]300 volt
Test voltage at 50 Hzcore / core[V]AC800
core / screen[V]AC800
Temperature rangein motion -5°C till +50°C
one time / fixed-30°C till +70°C
Bending radiusin motionx diameter15
FlammabilitystandardEN 60332-1-2
Insulation resistancemin.[MOhm/km]100
Mutal capacitance[Ohm/km]73,2
max.[nF/km]100

Application:

They are suitable for fixed installation indoors and are used for fire alarm systems.
