H05V-K ( Ysf )
H05V-K ( Ysf )
PVC Insulated Single Core Wire
Application:
For protected fixed installations inside appliances and in or on lighting fittings. For installations in pipes on and under plaster, however, only for signal circuit.
Construction:

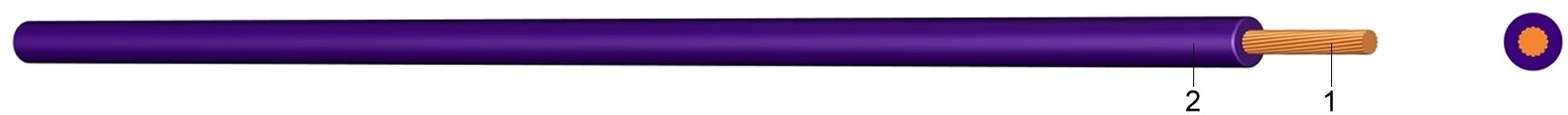

1 ..... fine stranded bare cooper
2 ..... PVC insulation
Standards:
DIN VDE 0281-3
DIN EN 60228 Class 5 (construction)
Technical data:
Nominal voltage Uo/U | [V] | 300 / 500 volt | |
Test voltage | [V]AC | 2000 | |
Temperature range | in motion | +5°C till +70°C | |
Operating temperature | short circuit | °C | 160 |
Short circuit time | max. | [sec] | 5 |
Bending radius | min. | x diameter | 4 |
Flammability | standard | EN 60332-1-2 |
Nominal cross section mm2 | Colours | Copper figure kg/km | Cond. construction (appr. value) mm | Overall diameter appr. mm | Weight appr. kg/km | ||||
---|---|---|---|---|---|---|---|---|---|
0,50 | sw/bl/br | 5,0 | 16 x 0,21 | 2,2 | 10 | ||||
gg/dbl/gr/hgr/vi/ws | 5,0 | 16 x 0,21 | 2,2 | 10 | |||||
or/gn/ge/rt/rs/tra | 5,0 | 16 x 0,21 | 2,2 | 10 | |||||
blws/rtws/rtge | 5,0 | 16 x 0,21 | 2,2 | 10 | |||||
swge/swws | 5,0 | 16 x 0,21 | 2,2 | 10 | |||||
0,75 | sw/bl/br | 7,5 | 24 x 0,21 | 2,4 | 12 | ||||
gg/dbl/hbl/gr | 7,5 | 24 x 0,21 | 2,4 | 12 | |||||
vi/ws/or/gn/rt | 7,5 | 24 x 0,21 | 2,4 | 12 | |||||
blrt/blws/wsbr | 7,5 | 24 x 0,21 | 2,4 | 12 | |||||
dblws/rtws/gnws | 7,5 | 24 x 0,21 | 2,4 | 12 | |||||
gnsw/rtsw | 7,5 | 24 x 0,21 | 2,4 | 12 | |||||
1,00 | sw/bl/br | 10,0 | 32 x 0,21 | 2,6 | 14 | ||||
gg/dbl/hbl/gr/vi | 10,0 | 32 x 0,21 | 2,6 | 14 | |||||
ws/or/gn/ge/rt | 10,0 | 32 x 0,21 | 2,6 | 14 | |||||
blws/rtws/brws | 10,0 | 32 x 0,21 | 2,6 | 14 | |||||
swws/gesw/viosw | 10,0 | 32 x 0,21 | 2,6 | 14 | |||||
blsw/brsw/viows | 10,0 | 32 x 0,21 | 2,6 | 14 |
