AYZL

AYZL

PVC Ignition Wire 1kV

Application:

In automobiles and similar systems.

AYZL PVC Ignition Wire 1kV

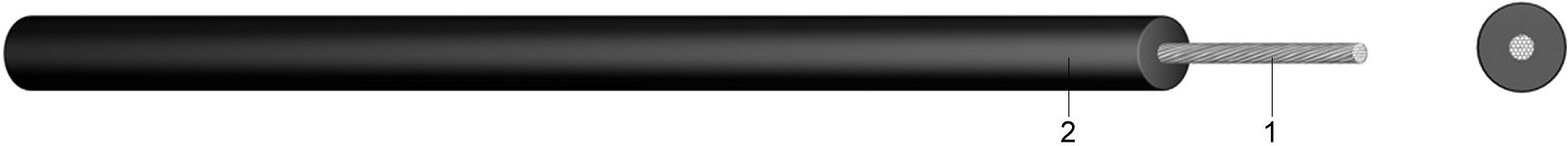

Construction:

1 ..... fine-stranded tinned copper
2 ..... special PVC insulation

Standards:

DIN EN 60228 Class 5 (construction)

Technical data:

Nominal voltage Uo/U[V]1000 volt
Test voltage[V]AC15000
Temperature rangein motion+5°C till +70°C
Bending radiusmin.x diameter12,5
FlammabilitystandardEN 60332-1-2
Nominal
cross section

mm2		Colours


Copper
figure

kg/km		Cond.
construction
(appr. value)
mm		Overall
diameter
appr.
mm		Weight

appr.
kg/km
1,5/5sw1530 x 0,26538
