N2XH

N2XH

Halogen-Free Cable with Improved Fire Behaviour

Application:

Safety cables are used in all locations where a high degree of protection against fire and fire-damage has to be provided for human life and equipment and are, therefore, subject to high security requirements. These cables may be used indoors and outdoors. They may not be installed directly into the ground and into the water. This cable conforms to Safety Class II standards.

N2XH Halogen-Free Cable with Improved Fire Behaviour

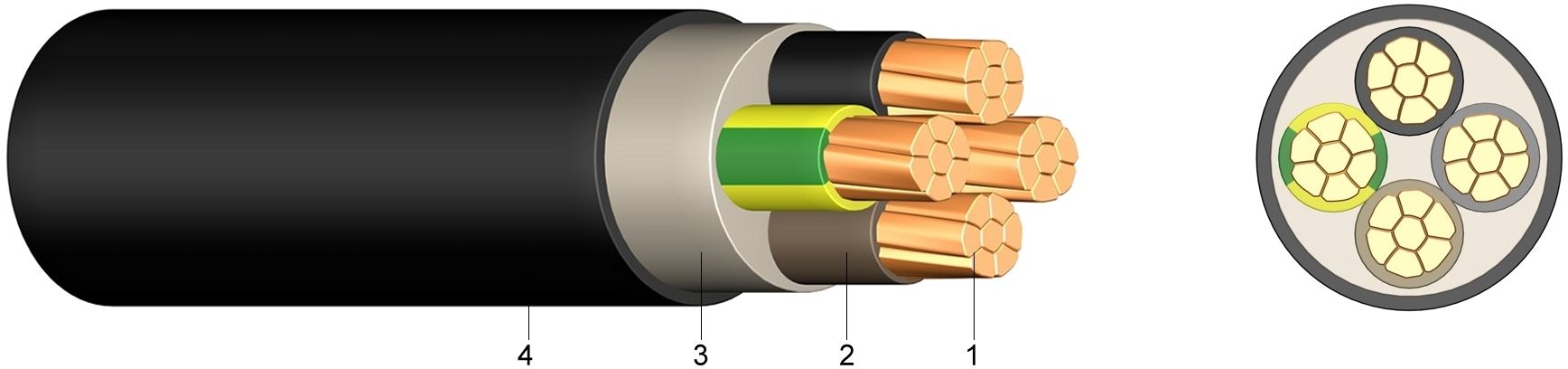

Construction:

1 ..... solid or stranded bare copper
2 ..... core insulation of halogen-free, cross-linked polyethylene
3 ..... core covering of a halogen-free compound
4 ..... outer sheath of halogen-free, cross-linkedpolymer compound, black

Standards:

DIN VDE 0276-604
HD 604 S1 part 1 + part 5 G
DIN EN 60228 class 1 and 2 (construction)
HD 308 S2 (core identification)

Technical data:

Nominal voltage Uo/U[V]600 / 1000 volt
Test voltage[V]AC4000
Temperature rangein motion-5°C till +90°C
Operating temperatureshort circuit°C250
Short circuit timemax.[sec]5
Bending radiussingle-core stylex diameter15
multi-core stylex diameter12
FlammabilitystandardEN 50266-2-4
EN 60332-1
IEC 60332-3 Kat.C
Number of cores and
nominal cross section

mm2		Copper
figure

kg/km		Overall
diameter
appr.
mm		Calorific
potential

kWh/m		Weight

appr.
kg/km
1 x 6 RE60,07,80,33112,0
1 x 16 RM160,09,80,46226,0
1 x 25 RM250,011,40,62327,0
1 x 35 RM350,012,60,71429,0
1 x 50 RM500,013,80,82555,0
1 x 70 RM700,015,71,00765,0
1 x 95 RM950,017,41,141.024,0
1 x 120 RM1.200,019,01,321.263,0
1 x 150 RM1.500,020,91,591.542,0
1 x 185 RM1.850,023,11,911.918,0
1 x 240 RM2.400,025,62,242.466,0
1 x 300 RM3.000,028,12,583.065,0
2 x 1,5 RE30,09,30,45125,0
2 x 2,5 RE50,010,10,52158,0
3 x 1,5 RE45,09,70,51142,0
3 x 2,5 RE75,010,60,59184,0
3 x 4 RE120,011,70,70247,0
3 x 6 RE180,012,80,80322,0
3 x 10 RE300,014,91,02480,0
3 x 16 RM480,017,71,36732,0
3 x 25 RM750,024,02,251.200,0
3 x 35 RM1.050,027,02,561.600,0
3 x 50 RM1.500,029,03,191.800,0
3 x 50/25 SM/RM1.750,032,03,532.200,0
3 x 70/35 SM/RM2.450,037,04,312.950,0
3 x 95/50 SM3.216,041,05,583.900,0
3 x 120/70 RM4.300,045,06,584.800,0
3 x 150/70 RM5.200,049,07,645.750,0
3 x 185/95 RM6.500,055,09,427.200,0
3 x 240/120RM8.400,062,012,229.150,0
4 x 1,5 RE60,010,40,60166,0
4 x 2,5 RE100,011,40,69220,0
4 x 4 RE160,012,60,84298,0
4 x 6 RE240,013,80,95391,0
4 x 10 RE400,016,31,26599,0
4 x 16 RM640,019,21,63908,0
4 x 25 RM1.000,023,92,481.413,0
4 x 35 RM1.400,026,72,931.863,0
4 x 50 SM2.000,029,13,762.362,0
4 x 70 SM2.800,032,24,553.151,0
4 x 95 SM3.800,037,25,724.339,0
4 x 120 SM4.800,040,86,365.332,0
4 x 150 SM6.000,050,07,146.350,0
5 x 1,5 RE75,011,20,71195,0
5 x 2,5 RE125,012,30,84260,0
5 x 4 RE200,013,71,00357,0
5 x 6 RE300,015,41,21486,0
5 x 10 RE500,017,81,52723,0
5 x 16 RE800,021,62,071.138,0
5 x 16 RM800,021,62,171.138,0
5 x 25 RM1.250,027,03,141.420,0
5 x 35 RM1.750,037,03,952.400,0
7 x 1,5 RE105,012,00,80239,0
12 x 1,5 RE180,016,01,29395,0
19 x 1,5 RE285,018,61,80557,0
24 x 1,5 RE360,022,22,35736,0
30 x 1,5 RE450,024,02,72900,0
7 x 2,5 RE175,015,01,31400,0
12 x 2,5 RE300,019,02,00600,0
19 x 2,5 RE475,022,02,69840,0
24 x 2,5 RE600,025,03,281.050,0
7 x 4 RE280,014,91,48457,0
