H07Z-K
H07Z-K
Halogen-Free Single Core Wire
Application:
For the installation in electrical conduit on or under plaster or in similar closed systems especially for applications where there is a requirement for low smoke and corrosive gas creation in the event of fire, however not outside.

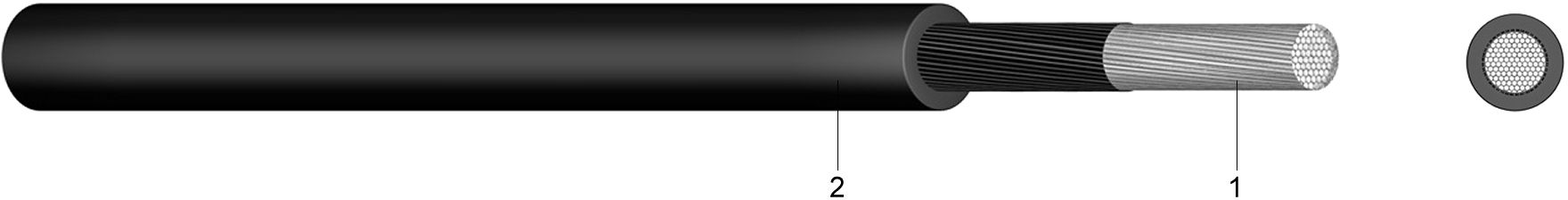

Construction:
1 ..... fine-stranded tinned or bare copper
2 ..... core insulation of halogen-free, cross-linked
polyolefin copolymerisate (EI5)
Standards:
DIN VDE 0282-9
HD 22.9 S2+A1
DIN EN 60228 class 5 (construction)
Technical data:
Nominal voltage Uo/U | [V] | 450 / 750 volt | |
Test voltage | [V]AC | 2500 | |
Temperature range | one time / fixed | +5°C till +90°C | |
Operating temperature | short circuit | °C | 250 |
Short circuit time | max. | [sec] | 5 |
Bending radius | one time / fixed | x diameter | 6 |
Flammability | standard | EN 60332-1 | |
IEC 60332-1 |
Number of cores and nominal cross section mm2 | Colours | Copper figure kg/km | Overall diameter appr. mm | Calorific potential kWh/m | Weight appr. kg/km | |||||
---|---|---|---|---|---|---|---|---|---|---|
1,5 | sw/bl/br | 15 | 2,9 | 0,40 | 20 | |||||
gg/gr/ws/or/rt | 15 | 2,9 | 0,40 | 20 | ||||||
2,5 | sw/bl/hbl/br | 25 | 3,6 | 0,49 | 32 | |||||
gg/gr/rt | 25 | 3,6 | 0,49 | 32 | ||||||
4,0 | sw/bl/br | 40 | 4,1 | 0,59 | 46 | |||||
gg/gr/rt | 40 | 4,1 | 0,59 | 46 | ||||||
6,0 | sw/bl/br | 60 | 4,8 | 0,71 | 65 | |||||
gg/gr/rt | 60 | 4,8 | 0,71 | 65 | ||||||
10,0 | sw/bl | 100 | 6,3 | 0,89 | 111 | |||||
gg | 100 | 6,3 | 0,89 | 111 | ||||||
16,0 | sw/bl/br | 160 | 7,2 | 1,20 | 166 | |||||
gg | 160 | 7,2 | 1,20 | 166 | ||||||
25,0 | sw/bl/br | 250 | 9,0 | 1,80 | 255 | |||||
gg | 250 | 9,0 | 1,80 | 255 | ||||||
35,0 | sw/bl | 350 | 10,1 | 2,20 | 348 | |||||
gg | 350 | 10,1 | 2,20 | 348 | ||||||
50,0 | sw/bl | 500 | 12,0 | 2,90 | 501 | |||||
gg | 500 | 12,0 | 2,90 | 501 | ||||||
70,0 | sw | 700 | 13,6 | 3,70 | 685 | |||||
gg | 700 | 13,6 | 3,70 | 685 | ||||||
95,0 | sw | 950 | 15,6 | 4,30 | 902 | |||||
gg | 950 | 15,6 | 4,30 | 902 |
