Halogenfree Telecommunication Cable

Application:

These installation cables are suitable for fixed installations in telecommunication and are to be used in locations with fire hazard to reduce damage in case of fire.

J-H(ST)H...Bd Halogenfree Telecommunication Cable

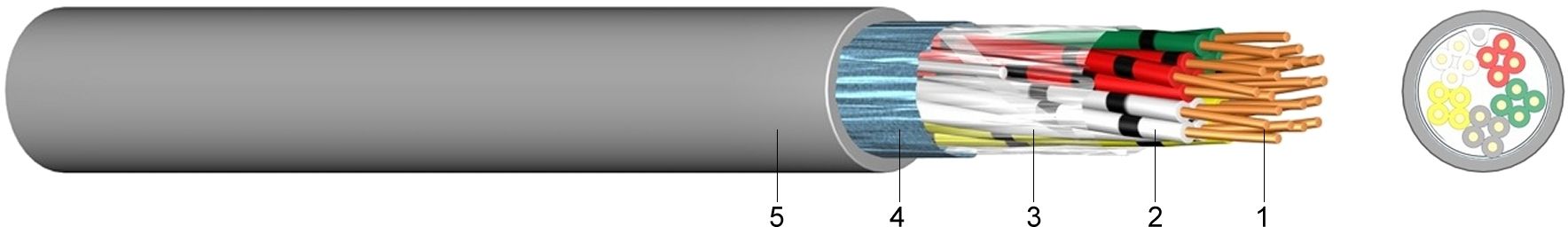

Construction:

1 ..... solid bare copper
2 ..... core insulation of halogen-free polymer (HI 2)
3 ..... layer of foil
4 ..... static screen of plastic coated aluminium foil with drain wire
5 ..... outer sheath of halogen-free polymer (HM 2), grey, Flame retardant

Information:

Cores twisted to star-quads, 5 quads a unit, unit to layers. Layer identification with coloured tapes.

Standards:

DIN VDE 0815 (core identification)
DIN EN 60228 Class 1 (construction)
DIN VDE 0207-24

Technical data:

Operating peak voltage[V]300 volt
Temperature rangein motion -5°C till +50°C
fixed-30°C till +70°C
Bending radiusin motion x diameter7,5
FlammabilitystandardEN 50266-2-4
IEC 60332-3 Kat.C
Number of pairs
and nominal
conductor diameter
(mm)		Copper
figure

kg/km		Insulation
thickness

mm		Overall
diameter
appr.
mm		Calorific
potential

kWh/m		Weight

appr.
kg/km
2 x 2 x 0,6131,06,00,1749
4 x 2 x 0,6241,08,60,2982
6 x 2 x 0,6361,09,00,3499
10 x 2 x 0,6591,010,40,44135
20 x 2 x 0,61161,012,80,69223
30 x 2 x 0,61721,014,90,92306
40 x 2 x 0,62281,016,71,14386
50 x 2 x 0,62851,418,71,45485
80 x 2 x 0,64551,422,62,10723
100 x 2 x 0,65681,625,22,62902
2 x 2 x 0,8251,06,80,2266
4 x 2 x 0,8411,09,90,37113
6 x 2 x 0,8621,010,40,43141
10 x 2 x 0,81031,212,20,60200
20 x 2 x 0,82031,415,50,95342
30 x 2 x 0,83041,418,51,38496
40 x 2 x 0,84041,420,81,73632
50 x 2 x 0,85051,622,72,05764
60 x 2 x 0,86061,624,92,48920
