YYSch
YYSch
PVC Insulated Telecommunication Cable
Application:
For indoor installation in conduits, cable ducts or on the wall surface. This cable is suitable for the application in intercom communicators but not admissible in heavy current installations.

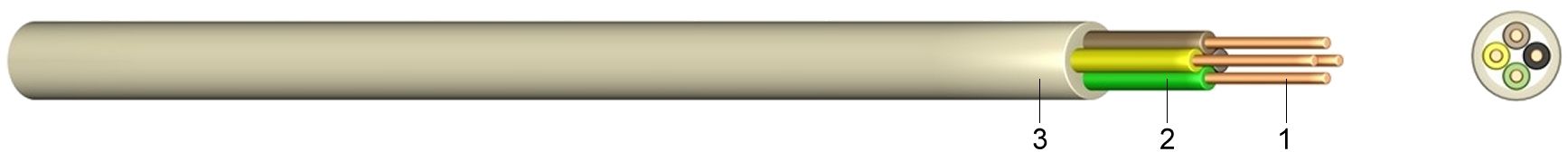

Construction:
1 ..... solid bare copper
2 ..... core insulation of polyvinylchloride (PVC)
3 ..... outer sheath of polyvinylchloride (PVC), ivory or grey
Standards:
according to Factory standard
Technical data:
| Operating peak voltage | [V] | 65 volt eff. | |
| Test voltage | [V]AC | 500 | |
| Temperature range | in motion | +5°C till +50°C | |
| Bending radius | in motion | x diameter | 15 |
| Flammability | standard | EN 60332-2-2 | |
| Insulation resistance | min. | [MOhm/km] | 50 |
| Conductor resistance | max. | [Ohm/km] | 65 |
| Number of pairs and nominal conductor diameter (mm) | Copper figure kg/km | Overall diameter appr. mm | Weight appr. kg/km | |||
|---|---|---|---|---|---|---|
| 2 x 0,6 | 5,6 | 3,0 | 12 | |||
| 3 x 0,6 | 8,4 | 3,2 | 16 | |||
| 4 x 0,6 | 11,2 | 3,4 | 20 | |||
| 5 x 0,6 | 14,0 | 3,7 | 26 | |||
| 6 x 0,6 | 16,8 | 4,0 | 29 | |||
| 10 x 0,6 | 28,0 | 6,0 | 54 | |||
| 16 x 0,6 | 45,0 | 6,8 | 78 | |||
| 26 x 0,6 | 72,8 | 8,2 | 110 | |||
