YR
YR
PVC Insulated Telecommunication Cable
Application:
For indoor installation in conduits, cable ducts or on the wall surface. This cable is suitable for the application in intercom communicators but not admissible in heavy current installations.

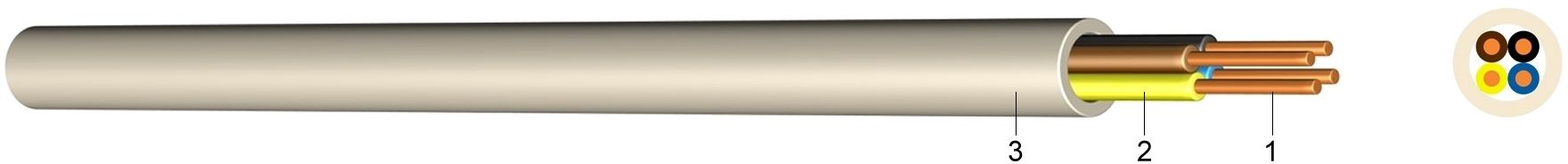

Construction:
1 ..... solid bare copper
2 ..... core insulation of polyvinylchloride (PVC)
3 ..... outer sheath of polyvinylchloride (PVC), white
Standards:
according to Factory standard
Technical data:
Operating peak voltage | [V] | 100 volt | |
Test voltage | [V]AC | 1000 | |
Temperature range | in motion | +5°C till +50°C | |
Bending radius | in motion | x diameter | 15 |
Flammability | standard | EN 60332-1-2 |
Number of pairs and nominal conductor diameter (mm) | Copper figure kg/km | Overall diameter appr. mm | Weight appr. kg/km | |||
---|---|---|---|---|---|---|
2 x 0,8 | 10 | 3,7 | 24 | |||
3 x 0,8 | 15 | 4,0 | 30 | |||
4 x 0,8 | 20 | 4,3 | 36 | |||
5 x 0,8 | 25 | 4,7 | 44 | |||
6 x 0,8 | 30 | 5,0 | 52 | |||
10 x 0,8 | 50 | 7,2 | 92 |
