RG 214 U

RG 214 U

Coaxial Cable 50 Ohm

Application:

For indoor installation as well as in industrial areas in conduits and cableducts, for transmission of high frequency signals and power.

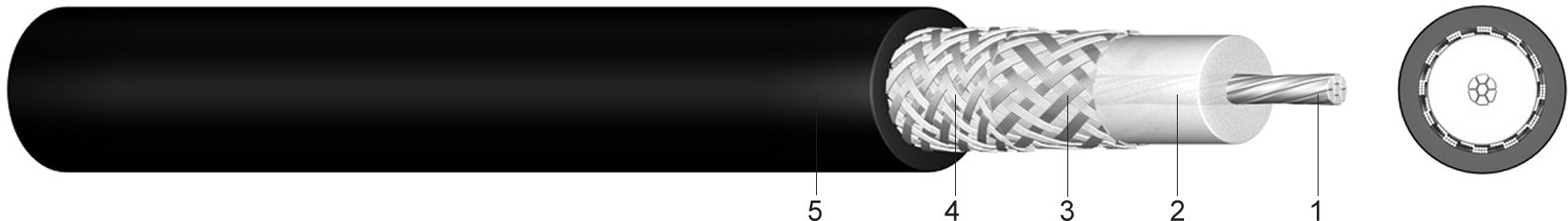

Construction:

1 ..... stranded silvered copper construction: 7 x 0,75mm
2 ..... core insulation of polyethylene (PE) Ø ca. 7,25mm
3 ..... screen of silvered copper braiding
4 ..... screen of silvered copper braiding
5 ..... outer sheath of polyvinylchloride (PVC), black

Standards:

according to US Standard MIL -C - 17

Technical data:

Temperature rangein motion-5°C till +70°C
Frequency rangeF max.[GHz]3
ImpendanceZL[Ohm]50 +/-2
Attenuation100 MHz[dB / 100 m]6,7
CapacitanceC[NF/km]100
Rel. velocity ratioV rel%66
Electric strength50 Hz[KV] eff.2
Bending radiusmin.v [mm]50
Type


Copper
figure

kg/km
Overall
diameter
appr.
mm
Weight

appr.
kg/km
RG 214 U11810,8195
