02YAFCY

02YAFCY

HF – Coaxial Cable 75 Ohm SAT - Conform

Application:

Suitable for applications in dry and humid locations as an aerial cable for community- and cable television networks. SAT-conform.

02YAFCY HF – Coaxial Cable 75 Ohm SAT - Conform

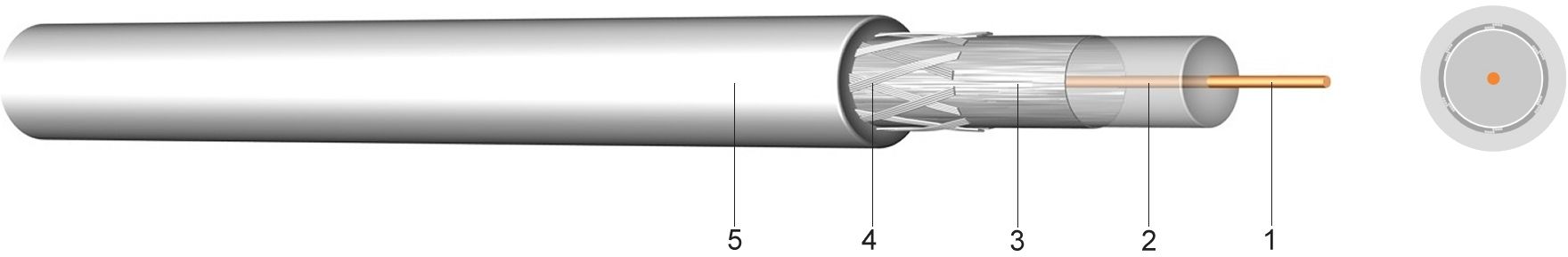

Construction:

1 ..... solid bare copper
2 ..... core insulation of polyethylene (PE)
3 ..... static screen of aluminium fo
4 ..... wide-meshed bare copper braiding
5 ..... outer sheath of polyvinylchloride (PVC), white

Technical data:

ImpendanceZL[Ohm]75 +/-3
Attenuation100 MHz[dB / 100 m]6,4
300 MHz[dB / 100 m]11,1
450 MHz[dB / 100 m]13,8
DC resistanceinner conductor[Ohm / km]131
outer conductor[Ohm / km]20
Type


Copper
figure

kg/km		Overall
diameter
appr.
mm		Weight

appr.
kg/km
02YAFCY 1,0/4,5146,544
HF – Coaxial Cable 75 Ohm SAT - Conform 02YAFCY - HF – Coaxial Cable 75 Ohm SAT - Conform
