2YCFGY

2YCFGY

HF - Coaxial Cable 75 Ohm SAT - Conform

Application:

Suitable for applications in dry and humid locations as an aerial cable for community- and cable television networks. SAT-conform.

2YCFGY HF - Coaxial Cable 75 Ohm SAT - Conform

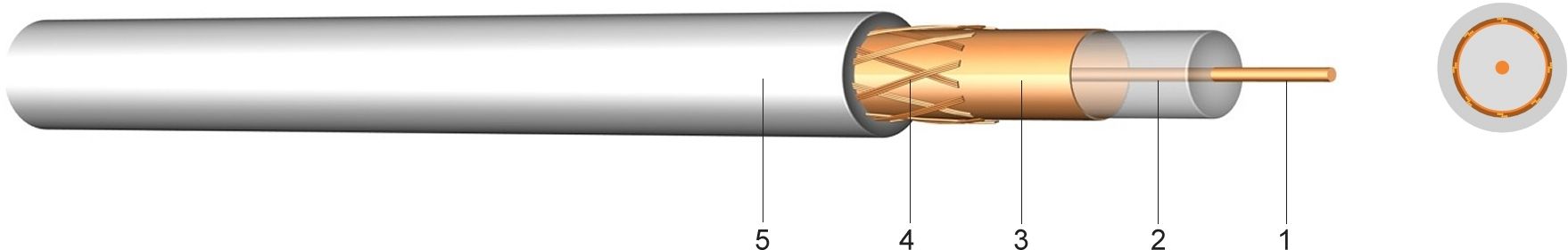

Construction:

1 ..... solid bare copper
2 ..... core insulation of polyethylene (PE)
3 ..... static screen of copper foil
4 ..... wide-meshed copper braiding
5 ..... outer sheath of polyvinylchloride (PVC), white

Technical data:

Temperature rangein motion-5°C till +70°C
ImpendanceZL[Ohm]75 +/-3
Attenuation100 MHz[dB / 100 m]8,4
300 MHz[dB / 100 m]16
450 MHz[dB / 100 m]19,5
850 MHz[dB / 100 m]27,1
DC resistanceinner conductor[Ohm / km]47
outer conductor[Ohm / km]23
Bending radiusmin.v [mm]30
Shielding[dB]75
Type


Copper
figure

kg/km		Overall
diameter
appr.
mm		Weight

appr.
kg/km
2YCFGY 0,7/4,417,86,544
2YCFGY 0,7/4,617,86,846
