RG 213 U
RG 213 U
Coaxial Cable 50 Ohm
Application:
For indoor installation as well as in industrial areas in conduits and cableducts, for transmission of high frequency signals and power.

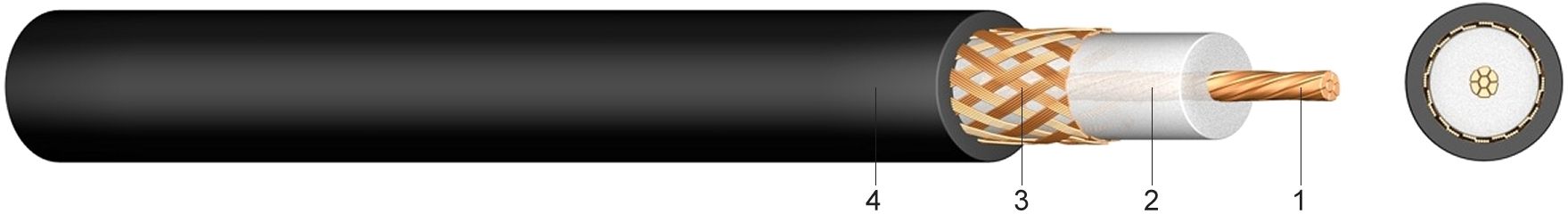

Construction:
1 ..... stranded bare copper construction: 7 x 0,75mm
2 ..... core insulation of polyethylene (PE) Ø ca. 7,3mm
3 ..... screen of bare copper braiding
4 ..... outer sheath of polyvinylchloride (PVC), black
Standards:
according to US Standard MIL -C - 17
Technical data:
| Temperature range | in motion | -5°C till +70°C | |
| Frequency range | F max. | [GHz] | 3 |
| Insulation resistance | R iso | [MOhm/km] | 10000 |
| Impendance | ZL | [Ohm] | 50 +/-2 |
| Attenuation | 100 MHz | [dB / 100 m] | 6,8 |
| Capacitance | C | [NF/km] | 100 |
| Rel. velocity ratio | V rel | % | 67 |
| Electric strength | 50 Hz | [KV] eff. | 10 |
| Bending radius | min. | v [mm] | 50 |
| Operating peak voltage | [kV] | 5,2 |
| Type | Copper figure kg/km | Overall diameter appr. mm | Weight appr. kg/km | |||
|---|---|---|---|---|---|---|
| RG 213 U | 76 | 10,3 | 154 | |||
