SL 801 C

SL 801 C

Combined Composite Connection Cable with PUR Outer Sheath and Copper Braiding

Application:

This cable is well suited for flexible use in industries such as industrial robots, cable chains or machine and plant engineering. It is used for high mechanical stress in dry, damp and wet locations as well as at low temperatures as a connection cable for the power supply and as a signal and data cable for the steering and control of motors.

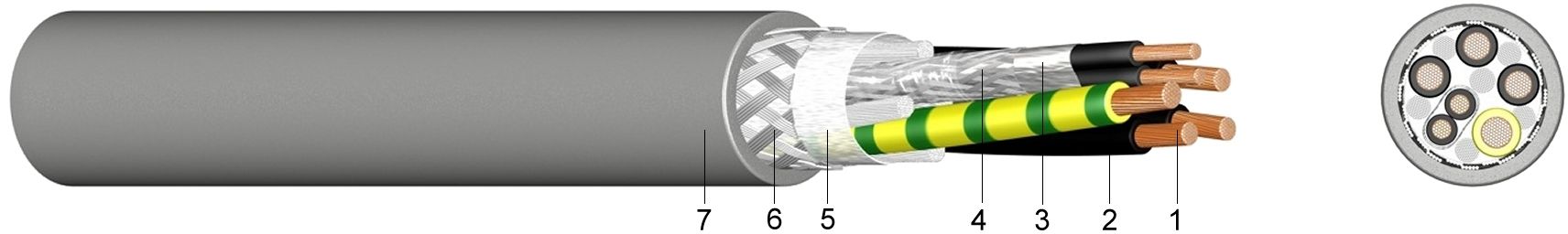

Construction:

1 ..... fine-stranded bare copper
2 ..... core insulation of thermoplastic polyesterelastomer (TPE-E) or polypropylene (PP)
3 ..... pair wise shielding of aluminium foil
4 ..... pair wise shielding of copper braiding
5 ..... wrapping of fine cotton binding
6 ..... screen of tinned copper braiding
7 ..... outer sheath of polyurethane (PUR), grey,oil and abrasion resistant

Standards:

adapted to DIN VDE 0281
DIN EN 60228 class 6 (construction)

Technical data:

Nominal voltage Uo/U[V]600 / 1000 volt
Test voltage[V]AC4000
Temperature rangein motion-30°C till +80°C
Operating temperatureshort circuit°C150
Short circuit timemax.[sec]5
Bending radiusmin.x diameter7,5
Oil-resistantstandardEN 60811-2-1
FlammabilitystandardEN 60332-1-2
Number of cores and
nominal cross section

mm2
Copper
figure

kg/km
Wire
diameter

mm
Overall
diameter
appr.
mm
Weight

appr.
kg/km
4 x 0,75 + 2 x (2 x 0,34)126,00,16/0,1111,0171,0
4 x 1,50 + 2 x (2 x 0,75)194,00,16/0,1112,1370,0
4 x 2,50 + 2 x (2 x 0,75)235,00,16/0,1115,3401,0
4 x 4,00 + 2 x (2 x 1)344,00,21/0,1617,3445,0
4 x 6,00 + 2 x (2 x 1)451,00,21/0,1619,3589,0
4 x 10,00 + 2 x (2 x 1)624,00,21/0,1623,4804,0
4 x 16,00 + 2 x (2 x 1)904,00,21/0,1627,01.134,0
4 x 25,00 + 2 x (2 x 1,5)1.307,00,21/0,1629,21.782,0
4 x 35,00 + 2 x (2 x 1,5)1.748,00,21/0,1632,42.570,0
