PUR Cable Chain Cable with Copper Braiding

Application:

This highly flexible cable chain cable S 200 C is best suited for application in industrial robots, handling gears, automation systems, wood and packaging machines, the automobile industry, machine tools and high shelf building.

S 200 C PUR Cable Chain Cable with Copper Braiding

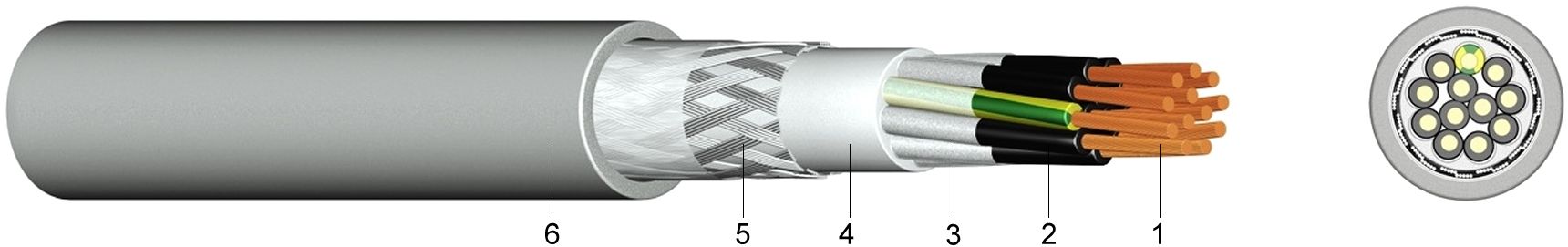

Construction:

1 ..... fine-stranded bare copper
2 ..... core insulation of thermoplastic polyesterelastomer (TPE-E) or polypropylene (PP)
3 ..... wrapping of fine cotton binding
4 ..... inner sheat
5 ..... screen of tinned copper braiding
6 ..... outer sheath of polyurethane (PUR), grey, poor in adhesion,oil and abrasion resistant, halogen-free

Standards:

adapted to DIN VDE 0281
DIN EN 60228 class 6 (construction)
core identification JZ: 1 core green/yellow, other cores black with figures
core identification OZ: every core black with figures

Technical data:

Nominal voltage Uo/U[V]300 / 500 volt
Test voltage at 50 Hzcore / core[V]AC2500
core / screen[V]AC1000
Temperature rangein motion-30°C till +70°C
one time / fixed-40°C till +70°C
Operating temperatureshort circuit°C150
Short circuit timemax.[sec]5
Bending radiusone time / fixedx diameter5
in motion x diameter7,5
Oil-resistantstandardEN 60811-2-1
FlammabilitystandardEN 60332-1-2
Number of cores and
nominal cross section

mm2		Copper
figure

kg/km		Wire
diameter

mm		Overall
diameter
appr.
mm		Weight

appr.
kg/km
2 x 0,5490,167,168,0
3 x 0,5550,167,481,0
4 x 0,5620,168,590,0
5 x 0,5680,168,9106,0
7 x 0,5880,1610,0134,0
12 x 0,51210,1611,9192,0
18 x 0,51630,1613,6250,0
25 x 0,52370,1616,8371,0
2 x 0,75550,167,779,0
3 x 0,75650,168,196,0
4 x 0,75730,168,7114,0
5 x 0,75900,169,5125,0
7 x 0,751110,1611,3167,0
12 x 0,751620,1612,9235,0
18 x 0,752430,1615,5336,0
25 x 0,753260,1618,4466,0
36 x 0,754160,1622,1636,0
3 x 1730,168,7105,0
4 x 1920,169,3128,0
5 x 11030,1610,1147,0
7 x 11300,1612,0198,0
12 x 11940,1613,9301,0
18 x 12910,1616,8420,0
25 x 13930,1620,2576,0
41 x 16230,1625,41.250,0
50 x 17540,1623,41.212,0
2 x 1,5820,168,8116,0
3 x 1,5980,169,4139,0
4 x 1,51170,1610,2157,0
5 x 1,51340,1611,3198,0
7 x 1,51770,1612,9252,0
12 x 1,52900,1615,6419,0
18 x 1,54100,1618,7561,0
25 x 1,55550,1622,4815,0
36 x 1,57320,1627,31.047,0
3 x 2,51350,1611,2197,0
4 x 2,51710,1612,1233,0
5 x 2,51980,1613,3290,0
7 x 2,52850,1616,2417,0
12 x 2,54430,1618,9631,0
18 x 2,56330,1622,5918,0
4 x 42660,1613,9310,0
4 x 63740,2116,1446,0
