PUR Cable Chain Data Cable with Copper Braiding

Application:

This highly flexible pair wise stranded cable chain data cable is best suited for different industrial areas such as machine construction, the automobile and communications industry, as well as for steering, controlling and measuring machinery. It is particularly useful for machinery that is put to prolonged use, such as machine controls. The paired cable suppresses electrical couplings of individual signals whilst effectively lowering near- and crosstalk attenuation. The copper braiding should be fully connected to optimise protection against high frequency external interference (EMC).

S 369 C TP PUR Cable Chain Data Cable with Copper Braiding

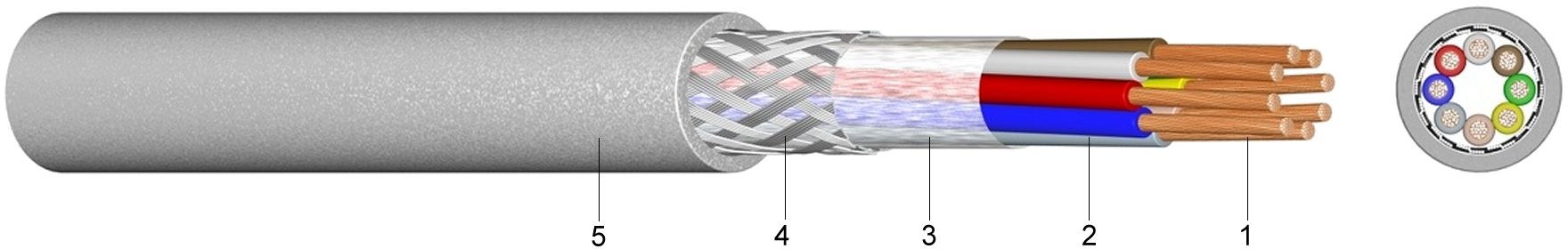

Construction:

1 ..... fine-stranded bare copper
2 ..... core insulation of thermoplastic polyesterelastomer (TPE-E) or polypropylene (PP)
3 ..... wrapping of fine cotton binding
4 ..... screen of tinned copper braiding
5 ..... outer sheath of polyurethane (PUR), grey, poor in adhesion,oil and abrasion resistant

Standards:

adapted to DIN VDE 0812
DIN EN 60228 class 6 (construction)
in according with DIN 47100 (core identification)

Technical data:

Ceiling voltage[V]till 0,34 mm² 250 volt
[V]from 0,50 mm² 350 volt
Test voltage[V]AC1500
Temperature rangein motion-30°C till +80°C
Bending radiusmin.x diameter7,5
Oil-resistantstandardEN 60811-2-1
FlammabilitystandardEN 60332-1-2
Number of cores and
nominal cross section

mm2		Copper
figure

kg/km		Wire
diameter

mm		Overall
diameter
appr.
mm		Weight

appr.
kg/km
2 x 2 x 0,14170,106,142
3 x 2 x 0,14210,106,454
4 x 2 x 0,14280,106,959
5 x 2 x 0,14380,107,475
6 x 2 x 0,14510,107,691
8 x 2 x 0,14570,108,7109
10 x 2 x 0,14630,1010,1120
2 x 2 x 0,25330,107,162
3 x 2 x 0,25400,107,468
4 x 2 x 0,25460,108,497
5 x 2 x 0,25530,109,0105
6 x 2 x 0,25750,109,8133
8 x 2 x 0,25770,1011,5153
10 x 2 x 0,25950,1012,8191
14 x 2 x 0,251140,1013,4214
2 x 2 x 0,34270,106,150
3 x 2 x 0,34350,106,454
4 x 2 x 0,34450,107,066
5 x 2 x 0,34560,107,577
6 x 2 x 0,34630,108,499
8 x 2 x 0,34880,109,4122
10 x 2 x 0,34980,1010,5146
2 x 2 x 0,5530,169,3102
3 x 2 x 0,5750,1610,0127
4 x 2 x 0,5770,1611,1152
5 x 2 x 0,5880,1611,9171
6 x 2 x 0,51050,1612,8195
8 x 2 x 0,51490,1615,7251
10 x 2 x 0,51820,1617,6348
2 x 2 x 0,75630,169,7113
3 x 2 x 0,75900,1610,9161
4 x 2 x 0,751050,1611,5170
5 x 2 x 0,751190,1612,5205
6 x 2 x 0,751390,1613,4229
8 x 2 x 0,751990,1616,4345
10 x 2 x 0,752670,1619,3459
12 x 2 x 0,752860,1616,4351
