Copper Rope - tinned copper
Cu lanko - Sn
Copper Rope - tinned copper
Application:
For grounding purposes in heavy current systems.
Construction:

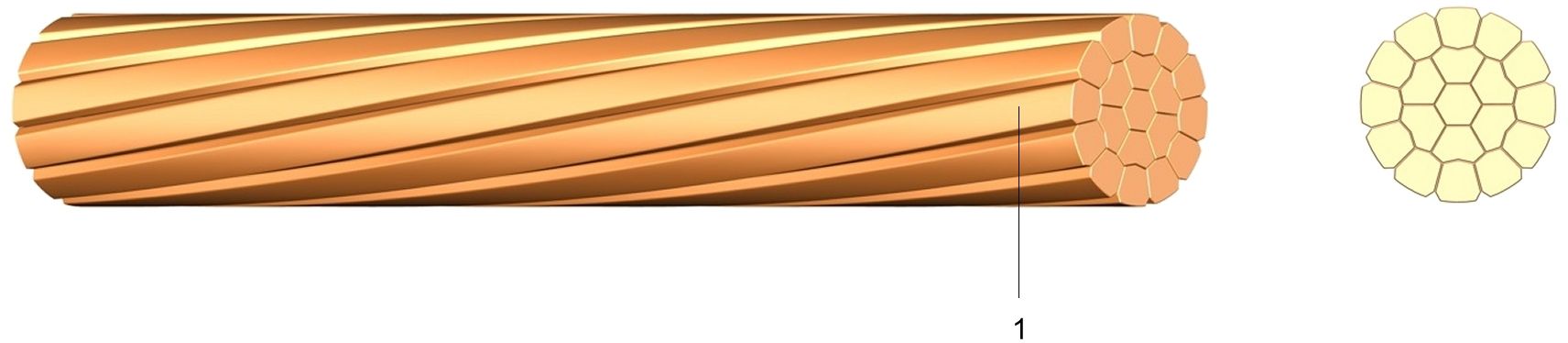

1 ..... stranded compacted tinned or bare copper
Standards:
soft style: IEC 60228 class 2
hard style: DIN VDE 48201
DIN EN 60228 class 2 (construction)
Number of cores and nominal cross section mm2 | Copper figure kg/km | Number of conductor min. / max. | Overall diameter appr. mm | Weight appr. kg/km | |||
---|---|---|---|---|---|---|---|
1 x 35 | 350,0 | 7 / 6 | 7,5 | 311,0 | |||
1 x 50 | 500,0 | 19 / 6 | 9,0 | 444,0 | |||
1 x 70 | 700,0 | 19 / 12 | 10,5 | 622,0 | |||
1 x 95 | 950,0 | 19 / 15 | 12,5 | 844,0 | |||
1 x 240 | 2.400,0 | 37 / 34 | 20,2 | 2.133,0 |
