Silicone Sheathed Cable with Copper Braiding

Application:

In dry, humid and wet locations as well as in the open-air for low mechanical stress, particularly at high ambient temperatures. The copper braiding optimises protection against high-frequency external interference

SiFCuSi Silicone Sheathed Cable with Copper Braiding

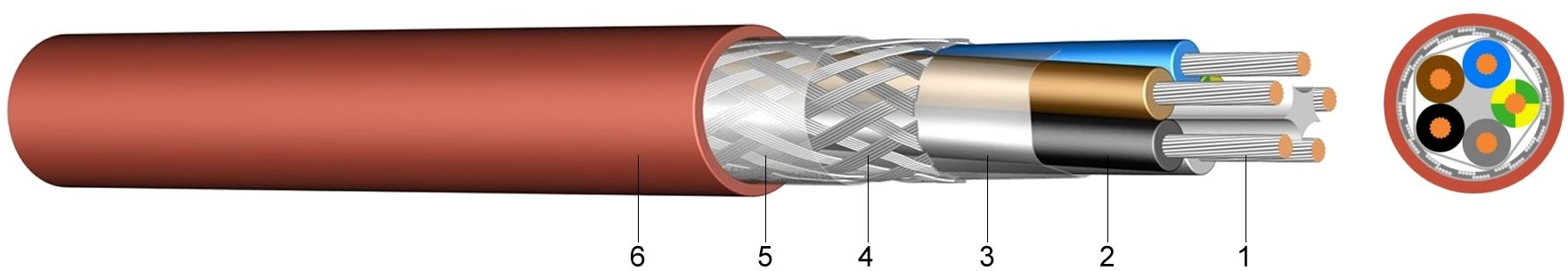

Construction:

1 ..... fine-stranded tinned or bare copper
2 ..... core insulation of silicone (2GI1)
3 ..... wrapped with PETP foil
4 ..... screen of tinned copper braiding
5 ..... wrapped with PETP foil
6 ..... outer sheath of silicone (2GM1), reddish brown

Standards:

DIN VDE 0207 part 20
DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification)

Technical data:

Nominal voltage Uo/U[V]300 / 500 volt
Test voltage[V]AC2000
Temperature rangein motion-60°C till +180°C
temporary resilient+250°C
FlammabilitystandardEN 60332-1-2
Number of cores and
nominal cross section

mm2		Copper
figure

kg/km		Cond.
construction
(appr. value)
mm		Overall
diameter
appr.
mm		Weight

appr.
kg/km
2 x 0,754524 x 0,217,072
3 x 0,755324 x 0,217,488
4 x 0,756424 x 0,218,4114
5 x 0,757724 x 0,219,1135
7 x 0,759524 x 0,219,8166
2 x 15032 x 0,217,279
3 x 16332 x 0,218,0105
4 x 17932 x 0,218,7129
5 x 19032 x 0,219,4150
7 x 111332 x 0,2110,1189
2 x 1,56930 x 0,268,2103
3 x 1,58530 x 0,268,6128
4 x 1,510330 x 0,269,4158
5 x 1,512730 x 0,2610,2188
7 x 1,516230 x 0,2611,2250
12 x 1,525330 x 0,2615,4433
3 x 2,512750 x 0,2610,3189
4 x 2,515350 x 0,2611,4249
5 x 2,518450 x 0,2612,4293
