SiHF

SiHF

Silicone Sheathed Cable

Application:

In dry, humid and wet locations as well as in the open-air for low mechanical stress, particularly at high ambient temperatures.

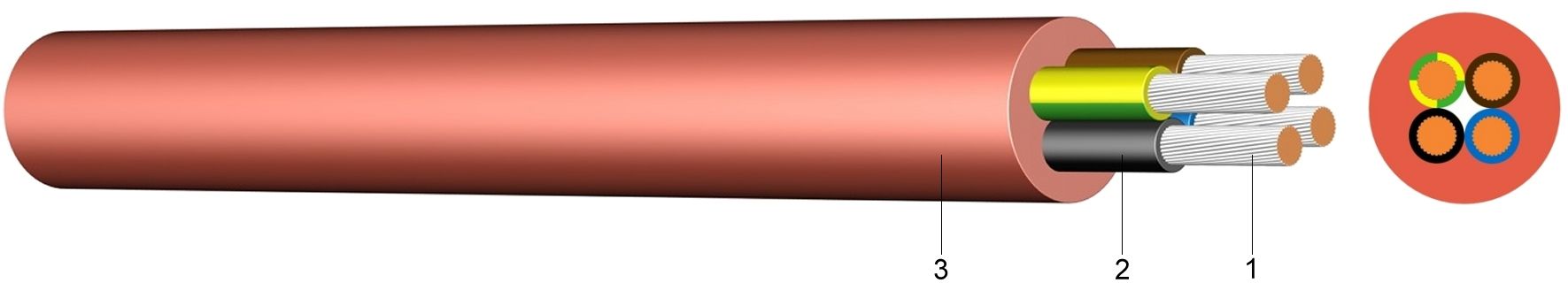

Construction:

1 ..... fine-stranded tinned or bare copper
2 ..... core insulation of silicone (2GI1)
3 ..... outer sheath of silicone (2GM1), reddish brown

Standards:

DIN VDE 0207 part 20
DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification)

Technical data:

Nominal voltage Uo/U[V]300 / 500 volt
Test voltage[V]AC2000
Temperature rangein motion-60°C till +180°C
temporary resilient+250°C
FlammabilitystandardEN 60332-1-2
Number of cores and
nominal cross section

mm2
Copper
figure

kg/km
Cond.
construction
(appr. value)
mm
Overall
diameter
appr.
mm
Weight

appr.
kg/km
2 x 0,7515,024 x 0,216,463,0
3 x 0,7522,524 x 0,216,876,0
4 x 0,7530,024 x 0,217,8101,0
5 x 0,7537,524 x 0,218,5120,0
7 x 0,7552,524 x 0,219,2148,0
2 x 120,032 x 0,216,671,0
3 x 130,032 x 0,217,493,0
4 x 140,032 x 0,218,1113,0
5 x 150,032 x 0,218,8136,0
7 x 170,032 x 0,219,5169,0
2 x 1,530,030 x 0,267,697,0
3 x 1,545,030 x 0,268,0117,0
4 x 1,560,030 x 0,268,8145,0
5 x 1,575,030 x 0,269,6175,0
7 x 1,5105,030 x 0,2610,9220,0
12 x 1,5180,030 x 0,2614,6413,0
16 x 1,5240,030 x 0,2616,2520,0
24 x 1,5360,030 x 0,2620,4811,0
2 x 2,550,050 x 0,269,2146,0
3 x 2,575,050 x 0,269,7179,0
4 x 2,5100,050 x 0,2610,6222,0
5 x 2,5125,050 x 0,2611,6268,0
7 x 2,5175,050 x 0,2612,6339,0
12 x 2,5300,050 x 0,2617,1609,0
2 x 480,050 x 0,3110,8210,0
3 x 4120,050 x 0,3111,5261,0
4 x 4160,050 x 0,3113,2346,0
5 x 4200,050 x 0,3114,3418,0
7 x 4280,050 x 0,3115,6530,0
4 x 6240,084 x 0,3115,6497,0
5 x 6300,084 x 0,3117,6631,0
4 x 10400,080 x 0,4119,1778,0
4 x 16640,0128 x 0,4123,41.197,0
4 x 251,000,0200 x 0,4128,61.827,0
