SiA
SiA
Silicone Insulated Wir
Application:
This wire is well suited for internal wiring in lamps, instruments, control panels and distributors for low mechanical stress particularly at high ambient Temperatures.

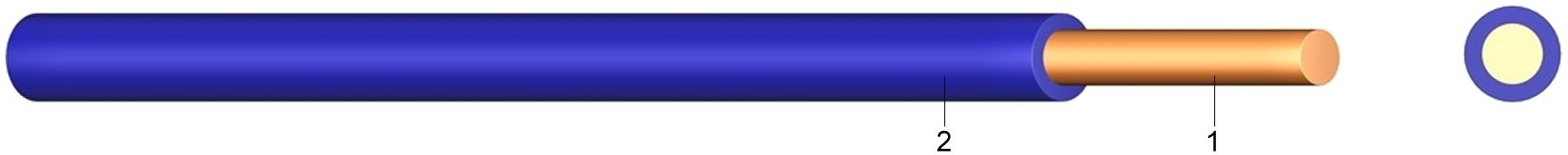

Construction:
1 ..... solid bare copper
2 ..... core insulation of silicone (2GI1)
Standards:
DIN EN 60228 Class 1 (construction)
Technical data:
Nominal voltage Uo/U | [V] | 300 / 500 volt | |
Test voltage | [V]AC | 2000 | |
Temperature range | in motion | -60°C till +180°C | |
temporary resilient | +250°C | ||
Flammability | standard | EN 60332-1-2 |
Number of cores and nominal cross section mm2 | Colours | Copper figure kg/km | Cond. construction (appr. value) mm | Overall diameter appr. mm | Weight appr. kg/km | ||||
---|---|---|---|---|---|---|---|---|---|
0,75 | sw/bl/br/gg/gr/ws/rt | 7,5 | 1 x 0,98 | 2,2 | 12 | ||||
1,00 | sw/bl/br/gg/ws | 10,0 | 1 x 1,13 | 2,3 | 15 | ||||
1,50 | sw/bl/br/gg/ws/rt | 15,0 | 1 x 1,38 | 2,6 | 20 | ||||
2,50 | sw/bl/gg | 25,0 | 1 x 1,78 | 3,2 | 33 | ||||
4,00 | sw | 40,0 | 1 x 2,26 | 3,9 | 51 | ||||
6,00 | sw | 60,0 | 1 x 2,76 | 4,4 | 72 | ||||
10,00 | sw | 100,0 | 1 x 3,57 | 5,6 | 120 |
