SiF

SiF

Silicone Insulated Wire

Application:

This wire is well suited for internal wiring in lamps, instruments, control panels and distributors for low mechanical stress particularly at high ambient Temperatures.

SiF Silicone Insulated Wire

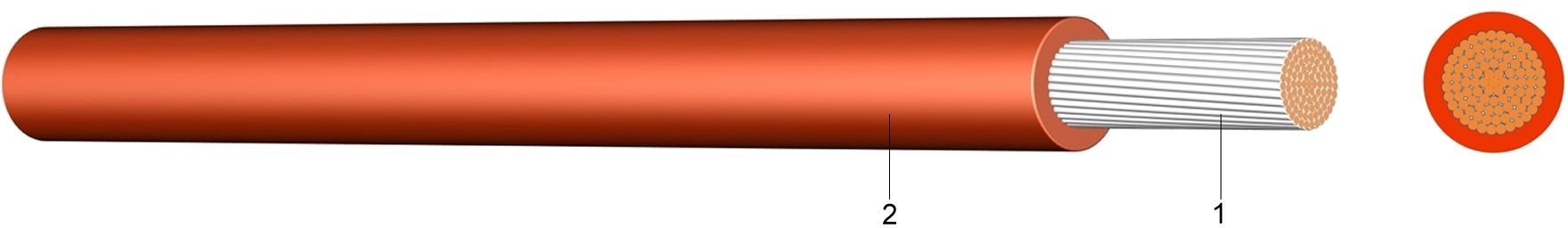

Construction:

1 ..... fine-stranded tinned or bare copper
2 ..... core insulation of silicone (2GI1)

Standards:

DIN EN 60228 class 5 (construction)

Technical data:

Nominal voltage Uo/U[V]300 / 500 volt
Test voltage[V]AC2000
Temperature rangein motion-60°C till +180°C
temporary resilient+250°C
FlammabilitystandardEN 60332-1-2
Number of cores and
nominal cross section

mm2		Colours


Copper
figure

kg/km		Cond.
construction
(appr. value)
mm		Overall
diameter
appr.
mm		Weight

appr.
kg/km
0,50sw/bl/br/gg/gr/ws/rt5,016 x 0,212,110,0
0,75sw/bl/br/gg/ws/rt7,524 x 0,212,413,0
1,00sw/bl/br/gg/gr/ws/rt/rbr10,032 x 0,212,516,0
1,50sw/bl/br/gg/gr/ws/rt/rbr15,030 x 0,262,822,0
2,50sw/bl/br/gg/gr/ws/rt25,050 x 0,263,435,0
4,00sw/bl/br/gg/gr/ws/rt40,056 x 0,314,254,0
6,00sw/bl/br/gg/ws/rt60,084 x 0,315,282,0
10,00sw/bl/gg/rt100,080 x 0,416,4132,0
16,00sw/bl/br/gg/rt/rbr160,0128 x 0,418,0209,0
25,00sw/bl/gg/rbr250,0200 x 0,4110,0327,0
35,00sw/gg/rbr350,0280 x 0,4111,2439,0
50,00sw/rbr500,0400 x 0,4113,3624,0
70,00sw/rbr700,0356 x 0,5115,4860,0
95,00sw/rbr950,0485 x 0,5117,81,161,0
120,00rbr1,200,0614 x 0,5119,81,456,0
150,00rbr1,500,0765 x 0,5121,51,785,0
185,00rbr1,850,0944 x 0,5124,42,233,0
240,00sw2,400,01225 x 0,5126,82,828,6
