Halogen-Free Control Cable with Improved Fire Behaviour – FRNC
Application:
For installations in dry, humid and wet locations, but not outdoors. These cables are used for fix or for flexible applications - but not with high tensile load or for forced bending.

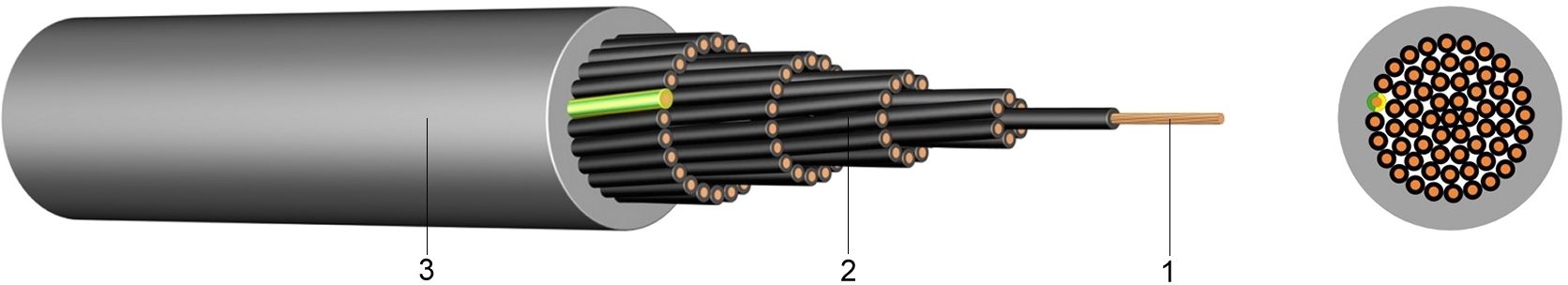

Construction:
1 ..... fine-stranded bare copper
2 ..... core insulation of halogen-free, cross-linkedpolyolefin copolymere
3 ..... outer sheath of halogen-free, cross-linkedpolyolefin copolymere, grey
Standards:
adapted to DIN EN 50266-2-4
adapted to DIN EN 50267-2-2
adapted to DIN EN 50268-2
DIN EN 60228 class 5 (construction)
Information:
core identification JZ: 1 core green/yellow, other cores black with figures
core identification OZ: every core black with figures
Technical data:
Nominal voltage Uo/U | [V] | 300 / 500 volt | |
Test voltage | [V]AC | 2000 | |
Temperature range | in motion | -15°C till +70°C | |
Operating temperature | short circuit | °C | 150 |
Short circuit time | max. | [sec] | 5 |
Bending radius | in motion | x diameter | 15 |
Flammability | standard | EN 50266-2-4 | |
EN 60332-1 | |||
IEC 60332-3 Kat.C |
Number of cores and nominal cross section mm2 | Copper figure kg/km | Cond. construction (appr. value) mm | Overall diameter appr. mm | Weight appr. kg/km | |||
---|---|---|---|---|---|---|---|
2 x 0,75 | 15,0 | 24 x 0,21 | 5,4 | 47 | |||
3 x 0,75 | 22,5 | 24 x 0,21 | 5,7 | 56 | |||
4 x 0,75 | 30,0 | 24 x 0,21 | 6,2 | 69 | |||
5 x 0,75 | 37,5 | 24 x 0,21 | 6,8 | 83 | |||
7 x 0,75 | 52,5 | 24 x 0,21 | 7,4 | 104 | |||
12 x 0,75 | 90,0 | 24 x 0,21 | 9,9 | 172 | |||
25 x 0,75 | 187,5 | 24 x 0,21 | 14,4 | 352 | |||
2 x 1 | 20,0 | 32 x 0,21 | 5,7 | 55 | |||
3 x 1 | 30,0 | 32 x 0,21 | 6,0 | 67 | |||
4 x 1 | 40,0 | 32 x 0,21 | 6,6 | 83 | |||
5 x 1 | 50,0 | 32 x 0,21 | 7,2 | 100 | |||
7 x 1 | 70,0 | 32 x 0,21 | 8,0 | 130 | |||
12 x 1 | 120,0 | 32 x 0,21 | 10,6 | 212 | |||
18 x 1 | 180,0 | 32 x 0,21 | 12,7 | 314 | |||
25 x 1 | 250,0 | 32 x 0,21 | 15,3 | 429 | |||
2 x 1,5 | 30,0 | 30 x 0,26 | 6,3 | 72 | |||
3 x 1,5 | 45,0 | 30 x 0,26 | 6,7 | 88 | |||
4 x 1,5 | 60,0 | 30 x 0,26 | 7,3 | 110 | |||
5 x 1,5 | 75,0 | 30 x 0,26 | 8,1 | 135 | |||
7 x 1,5 | 105,0 | 30 x 0,26 | 8,9 | 174 | |||
12 x 1,5 | 180,0 | 30 x 0,26 | 12,0 | 289 | |||
18 x 1,5 | 270,0 | 30 x 0,26 | 14,4 | 433 | |||
25 x 1,5 | 375,0 | 30 x 0,26 | 17,4 | 596 | |||
34 x 1,5 | 510,0 | 30 x 0,26 | 19,6 | 786 | |||
2 x 2,5 | 50,0 | 50 x 0,26 | 7,6 | 110 | |||
3 x 2,5 | 75,0 | 50 x 0,26 | 8,1 | 137 | |||
4 x 2,5 | 100,0 | 50 x 0,26 | 8,9 | 174 | |||
5 x 2,5 | 125,0 | 50 x 0,26 | 10,0 | 217 | |||
12 x 2,5 | 300,0 | 50 x 0,26 | 14,9 | 467 | |||
4 x 4 | 160,0 | 56 x 0,31 | 10,8 | 267 | |||
5 x 4 | 200,0 | 56 x 0,31 | 12,1 | 331 | |||
4 x 6 | 240,0 | 84 x 0,31 | 13,0 | 388 | |||
5 x 6 | 300,0 | 84 x 0,31 | 14,5 | 480 | |||
5 x 10 | 500,0 | 80 x 0,41 | 18,1 | 766 |
